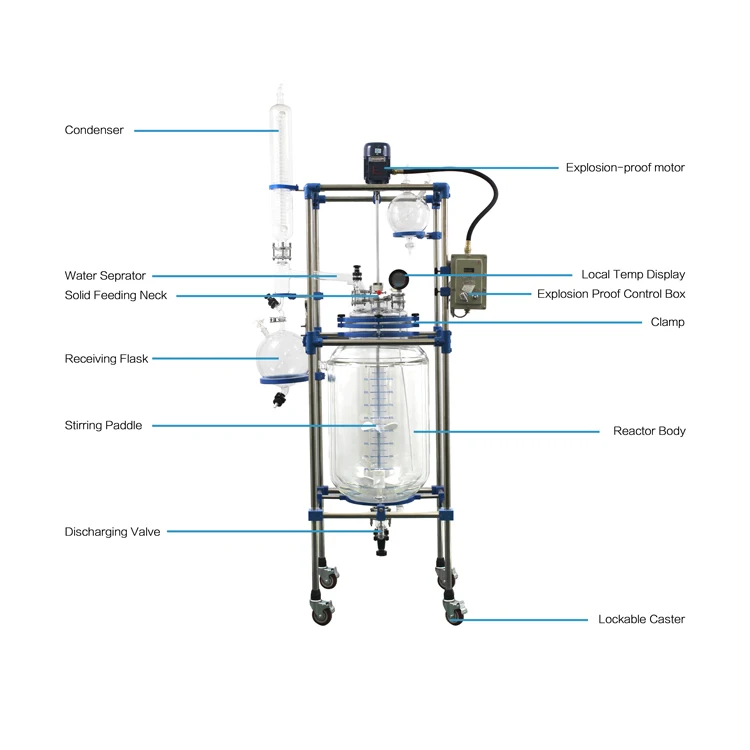

Automatic 100L Jacketed Glass Reactor Vessel with 304 Stainless Steel Frame and 6 Neck on Reactor Cover
Premium Products
Automatic 100L Jacketed Glass Reactor Vessel with 304 Stainless Steel Frame and 6 Neck on Reactor Cover
1
2
3
4
5
6
Place of Origin :Jiangsu, China
Brand Name :Sanjing
MOQ :1
Price :$4,100-4,400
Capacity :10-100L (2.64-26.42gal)
Voltage :220V
Dimensions :1000*700*2700 mm
Volume :100L
Material :3.3 borosilicate glass
Rotation speed :50-600 rpm
Stirring paddle :304 stainless steel with PTFE
Neck quantity :6 (customizable)
Frame material :304 stainless steel
Vacuum degree :0.098Mpa
Working temperature :-100-250°C
Heating method :Thermal Oil Heating
Weight :125 kg
Motor power :370W
Torque :5.89 Nm
Contact Now
Product Description
Glass reactor unit is the key part of the experiment process. It can be jointed with vacuum pump, chilling circulator,heationg circulator.It is adopted in the industry of chemical products, advanced material synthesis experiment,etc.
Model
FPGR-100
Reactor volume (L)
100
Neck quantity on lid
6
External diameter of inner vessel (mm)
460
External diameter of outer vessel (mm)
500
Cover diameter (mm)
340
Vessel height (mm)
950
Motor power (W)
370
Rotation speed (rpm)
50-600
Torque (Nm)
5.89
Electrical power (V)
220
Vacuum degree (Mpa)
0.098
L×W×H (mm)
1000*700*2700
Features
•Machine has a 304 stainless steel frame and moveable design. There are at least 5 preformed holes on the lid, which can help processing of liquid recycling, flowing in, temperature measuring, liquid adding, etc.
•Main reactor body is made by G3.3 borosilicate glass. It can supportchemical reaction temperature from -120 to 300 centigrade.
•Glass reactor can work under vacuum and constant pressure. In quiescent state, vacuum rate of its inner space can reach -0.098MPa.
•Stirring hole of the lid will be sealed by alloy steel mechanical sealing part. Connector is adopted PTFE material. Both of them will guarantee the vacuum rate of reactor inside space.
•PT100 temperature sensor, which is a high precision temperature measuring tool.
Application
